Prices SA01-M1B4 HIMMEL technologies Italy

BRAND	HIMMEL technologies
Product	SA01-M1B4

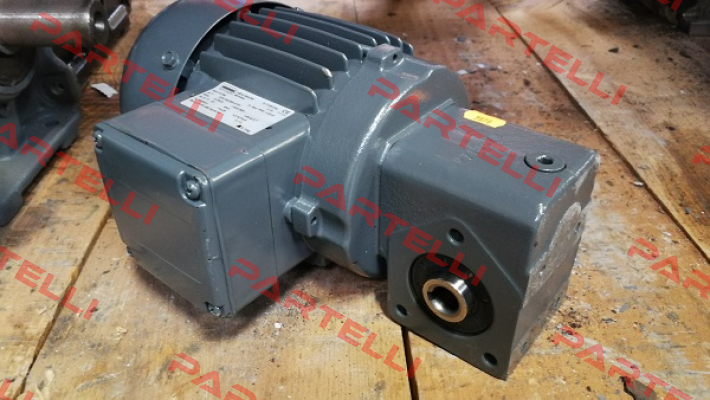

Description	worm gear motor
Internal code	PRT3363176
Weight	8

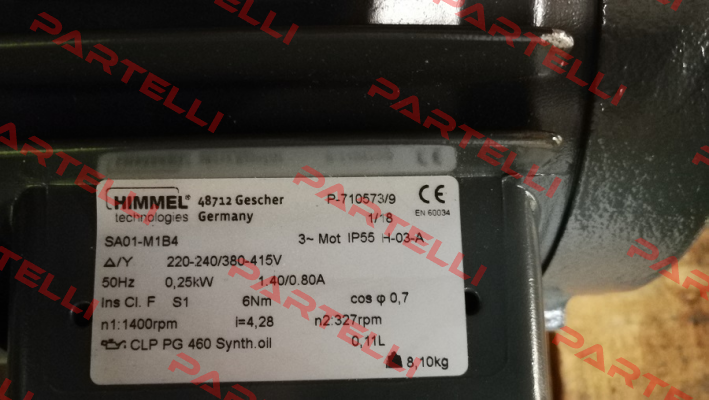

Technical specification	2010000310 St. Warennummer: 85015100 HIMMEL®-Schneckengetriebemotor Maßblatt: SA14 Getriebebauart / Type: HIMMEL®-Schneckengetriebemotor / HIMMEL®-worm gear Getriebetyp / Type: SA01-M1B4 Maßbild / Dimension sheet: SA14 Abtriebsdrehzahl / Output speed [1/min; 1/rpm]: 327.00 Übersetzung / Ratio [i]: 4.28 Farbe / Colour: RAL 7011 Eisengrau 2K / Iron grey 2K-PUR Schutzart / Protection class: IP55 Bauform / Mounting position: H-03-A Abtriebsmoment / Output torque [Nm]: 6 Abtriebswelle Getriebe / Output shaft [mm; Zoll]: H14x80 Lagerung Getriebe / Bearing: zugeordnete Lagerung / assigned bearings Ölart / Oil type: CLP PG 460 Synth.oil Ölmenge / Oil quantity [l]: 0.11 Wellenwerkstoff / Shaft material: C45 Abdichtung Getriebe / Sealing: Wellendichtring (WDR) / shaft seal ring Elektrische Ausführung / Elektrical design: CE Frequenz / Frequency [Hz]: 50 Spannung / Voltage [V]: 220-240/380-415 Schaltung / Wiring: S100 (D/Y) Leistung / Power [kW]: 0.25 Strom / Current [A]: 1.40/0.80 KK-Lage / Terminal box position: 3C KK-Ausführung / Terminal box type: Kunststoff / plastic Wicklungsschutz / Motor protector: ohne / without Abdichtung Motor / Sealing motor: normal / normal Isolationsklasse / Insulation class: F Betriebsart / Duty type: S1 Lüfter / Fan: Kunststoff / plastic

HIMMEL technologies - SA01-M1B4 referenced worm gear motor product produced by high technology.
SA01-M1B4 became irreplaceable of foundations. SA01-M1B4 referenced product which is satisfy the customer's needs, offers advantages of quality and cost. You can find the most competitive prices about endustriel accessories in our company. Make an offer to us for SA01-M1B4 please contact us.

Where can I buy SA01-M1B4 by HIMMEL technologies in Italy?

You can purchase SA01-M1B4 by HIMMEL technologies from Partelli SRL. We serve customers across Italy, offering competitive prices and reliable service.

What is the price of the SA01-M1B4?

For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.

Who is the official distributor or seller of HIMMEL technologies in Italy?

While we are not the official distributor or seller of HIMMEL technologies in Italy, we source our products from reliable channels and offer you original HIMMEL technologies equipment at competitive prices.

How can I access SA01-M1B4 catalogs, user manuals, technical documents, and PDFs?

You can access catalogs, user manuals, and technical documents for SA01-M1B4 on our website. Visit our resources section or contact us directly for specific documents.

Do you provide technical support for SA01-M1B4?

While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.
