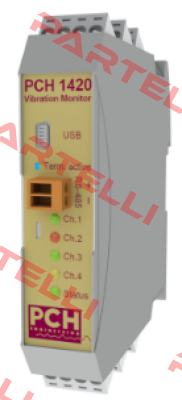

PCH1420/CHF8460 -4 channel vibration monitoring Ch1-4 IEPE

- 4 inputs for IEPE piezo transducers

1. Machine size monitoring in accordance with DIN ISO 10816-3

- Vibration velocity measurement variable

- Measurement range 0 - 20 mm/s factory setting

- Frequency 10 Hz - 1000 Hz, 2 Hz - 10 kHz (VDI 3832)

2. Monitoring of selective frequency ranges in accordance with VDI3832

- Frequency 2Hz - 10kHz, or by application*

- Analysis function, peak value, envelope, crest factor and others

Monitoring through limits A1-4 and D1-4 *

Optionally 4 alarm relays or 4 analog outputs, selectable

4 alarm outputs, open colector 30V DC/ 0.1A

- Response delay A1- 0- 99 s. D1- 0- 99 s.*

- Alarm A1 = 4.5 mm/s factory setting

- Alarm D1 = 11 mm/s factory setting

- 4 analog outputs, RMS 4-20mA, selectable for DIN ISO 10816-3 or VDI 3832,

Digital input for test function and alarm lock, via external connection

- PNP-NPN speed input with monitoring function

- Process input, 4-20 mA, example Pt 100

- 1 system relay for self-monitoring, safety relay in accordance with PL- D

- +24 VDC supply, connection via terminals - USB and RS485 interface

- Module-addressable with connection to an Ethernet module

- UA in OPC UA (Unified Architecture) server

- * Parameter setting via VibStudio with analysis and diagnosis function

- Plastic housing for DIN rail mounting, IP54

Customs code: 90318080
