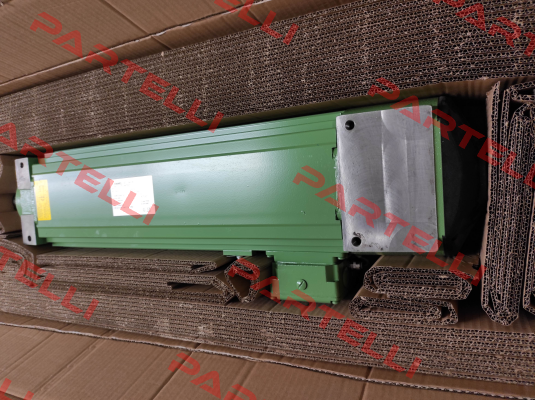

Prices  2140001618 / KP75-XL/2-M12K M16-RH-ATEX  HIMMEL technologies  Italy

Same as type plate number 245353-7-1

*Attention: The clamping system (sound diagram) includes flange washers, tools, clamping screw
and bolts are not included!
Dimension sheet: 1NJ000293
K model series/design series: K75
Type/type: KP75-XL/2-M12K
- - Varnishing/painting - -: -
Color/colour: RAL 6011 Reseda green 2K/Reseda green 2K PUR
- - Mechanical data/mechanical data - -: -
K-size sheet/dimension sheet: 1NJ000293
Design/mounting position: B3
K-mounting sides: double-sided foot machining
Storage AS/Bearing-AS (DE): Double bearing
Bearing BS/Bearing-BS (NDE): simple bearing

Protection class: IP64
Ex version/Ex design: ATEX (CE) - only valid for European market/
Approved for European Market Only
Ex label flat motor/Ex label. flat motors: II 3D Ex tc IIIB T300°C DC - IP64
- - Output variant -: -
Output variant: Shaft with key spring
W.diameter/shaft diameter [mm]: 40
W. length/shaft length [mm]: 70 (free shaft end)
Wave thread/shaft thread: M16-R.H.
- - - - Electrical data - -: -
Label/Approval|Identification/Certification: CE
Manufacturing method/Type of production: Version according to [CSA] without approval/ design
based on [CSA] without approval
Number of phases: 3~
Rated power/ Nominal power [kW]: 16.8//24.0
Operating mode/Duty type: S 6-75%
Operating mode/Duty type CSA/UL: int. duty S6 7.5 min on, 2.5 min off
Number of pins/Poles: 2
Nominal motor speed/Nominal motor speed [1/min; rpm]: 3510/7030
Rated voltage/nominal voltage [V]: 254/440//440
Rated frequency/ Nominal frequency [Hz]: 60//120
Rated current/Nominal current In [A]: 51.80/30.00//46.10
Circuit/ Wiring: S100//S102 (D/Y//D)
CosPhi/CosPHI: 0.84//0.84
Insulation class: F
Winding protector/ Motor protector: PTC 130°C
Supply type/power supply: FU operation at rated frequency/ inverter duty at rated
Frequency
Supply type/power supply CSA/UL: inverter duty at rated frequency
Drive protection/motor protection (IEC60034-25): to be guaranteed by system managers/to be
Guaranteed by System Manager
Motor circuit diagram/Motor connection diagram: A0100000
Circuit diagram built-in 1/Con. diagram compon. 1: A01TP000
- - Electrical Connection/electrical connection- -: -
K-elect.connection type/elec. connection mode: terminal box/ terminal box
KK material/Terminal box material: aluminum/aluminum
KK location/Terminal box location: 1BK/3BK
KK screw connection/gland: (2x) -M25x1.5 + (1x) -M16x1.5 + (3x) -M12x1.5
External grounding motor/External grounding motor: Existing
- - Ventilation/Ventilation - -: -
Ventilation type: E - self-ventilation/self-ventilation
Ventilation type CSA/UL: TEFC
- - - - brake/brake - - - - - - - - - - - -: -
Brake type/ Brake type: M12K [12Nm] (L8)
Brake control voltage [V]: 415-506

Wiring/Connection: separate/separate
Brake 1 circuit diagram/Brake connection diagram 1: A01BA000
- - - - load, forces - - - -: -
max. radial force/max. radial forces/Fr [N]: 500
Ambient temperature/ Ambient temperature /Ta [°C]: -20/+40
- - Rating plate/name plate - -: -
K-rating plate/name plate: adhesive label 90x60 /adhesive label 90x60
Rating plate logo/name plate logo: SKY
