Prices BNA-EN20/16/B1-M1,800-L60x2-MRF-ZTS190/PN16/A110 Ksr Kuebler Italy

BRAND	Ksr Kuebler
Product	BNA-EN20/16/B1-M1,800-L60x2-MRF-ZTS190/PN16/A110
Internal code	PRT5096705
Weight	35
Custom code	90261089

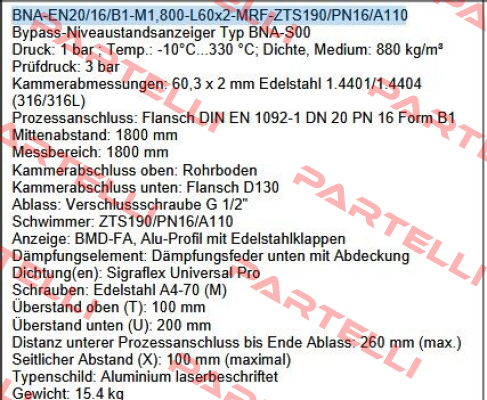

Technical specification	BNA-EN20/16/B1-M1,800-L60x2-MRF-ZTS190/PN16/A110 Bypass level indicator type BNA-S00 Pressure: 1 bar; temperature: -10°C... 330 °C; density, medium: 880 kg/m³ Test pressure: 3 bar Chamber dimensions: 60.3 x 2 mm stainless steel 1.4401/1.4404 (316/316L) Process connection: flange DIN EN 1092-1 DN 20 PN 16 form B1 Center distance: 1800 mm Measurement range: 1800 mm Chamber closure at the top: tube base Lower chamber closure: Flange D130 Drain: G 1/2" plug Swimmer: ZTS190/PN16/A110 Display: BMD-FA, aluminum profile with stainless steel flaps Damping element: damping spring at the bottom with cover Seal (s): Sigraflex Universal Pro Screws: stainless steel A4-70 (M) Overhang above (T): 100 mm Bottom overhang (U): 200 mm Distance from bottom process connection to outlet end: 260 mm (max.) Side distance (X): 100 mm (maximum) Type plate: laser marked aluminum Weight: 15.4 kg

Ksr Kuebler - BNA-EN20/16/B1-M1,800-L60x2-MRF-ZTS190/PN16/A110 referenced product produced by high technology.
You can provide the all references you look for in endustrial accessories in our company with our unique product range. All of the listed products are with guaranteed origin and high quality. Thanks to our large disturbiton network, we offer door delivery in most suitable conditions. BNA-EN20/16/B1-M1,800-L60x2-MRF-ZTS190/PN16/A110 referenced product is an original piece of your foundation or machine, original parts makes your machine live longer.

Where can I buy BNA-EN20/16/B1-M1,800-L60x2-MRF-ZTS190/PN16/A110 by Ksr Kuebler in Italy?

You can purchase BNA-EN20/16/B1-M1,800-L60x2-MRF-ZTS190/PN16/A110 by Ksr Kuebler from Partelli SRL. We serve customers across Italy, offering competitive prices and reliable service.

What is the price of the BNA-EN20/16/B1-M1,800-L60x2-MRF-ZTS190/PN16/A110?

For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.

Who is the official distributor or seller of Ksr Kuebler in Italy?

While we are not the official distributor or seller of Ksr Kuebler in Italy, we source our products from reliable channels and offer you original Ksr Kuebler equipment at competitive prices.

How can I access BNA-EN20/16/B1-M1,800-L60x2-MRF-ZTS190/PN16/A110 catalogs, user manuals, technical documents, and PDFs?

You can access catalogs, user manuals, and technical documents for BNA-EN20/16/B1-M1,800-L60x2-MRF-ZTS190/PN16/A110 on our website. Visit our resources section or contact us directly for specific documents.

Do you provide technical support for BNA-EN20/16/B1-M1,800-L60x2-MRF-ZTS190/PN16/A110?

While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.
